PRM series mini pumps
PRM series mini pumps

Positive displacement vane pumps with mechanical seal

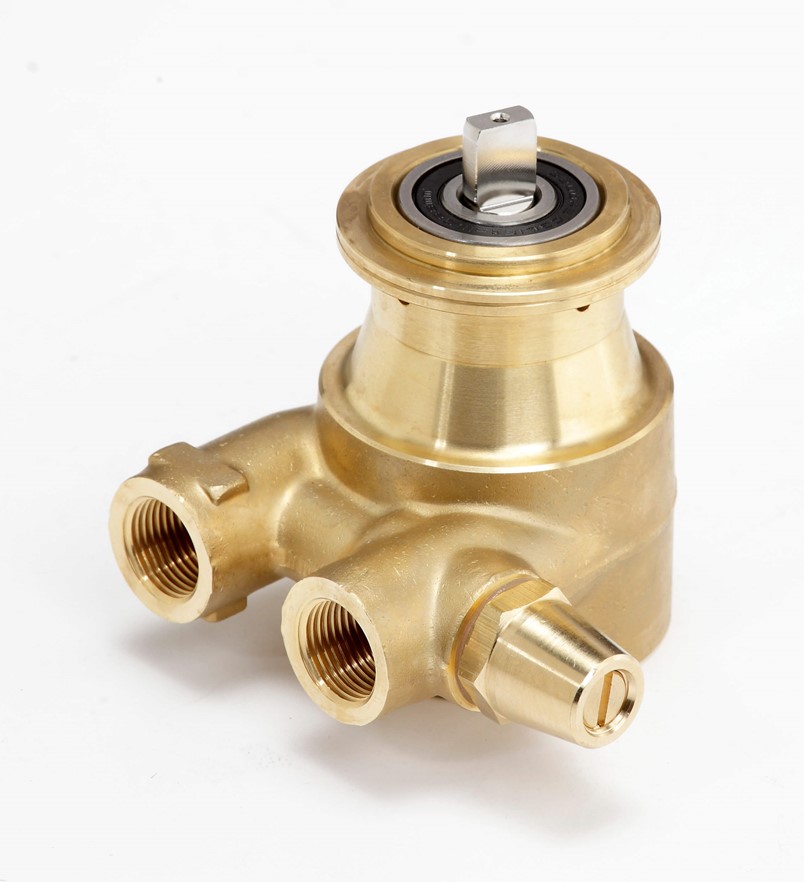

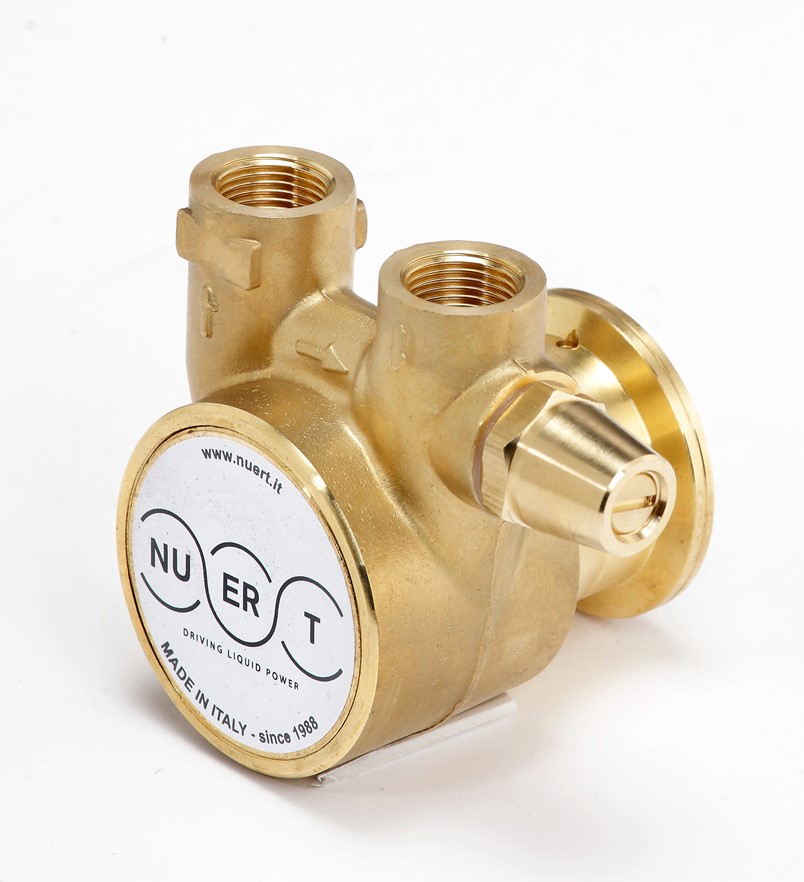

PRM series mini pumps

High-performance and compact pumps

The PRM series positive displacement rotary pumps have an excellent balance between performance and size.

They are self-priming pumps that guarantee excellent noiseless operations.

Download the brochure Request a quote

Areas of application

Pumps perfect for applications in water dispensers, professional coffee machines, liquid food transfer, carbonation.

Performance and

PRM series mini pumps are available with the following flow rates:

50 l/h
80 l/h
100 l/h
150 l/h
210 l/h
270 l/h

The flow rate values refer to a rotation speed of 1,400 rpm. For speeds of 1,725 rpm a 20% increase must be taken into account.

The maximum pressure that can be achieved is 18 bar.

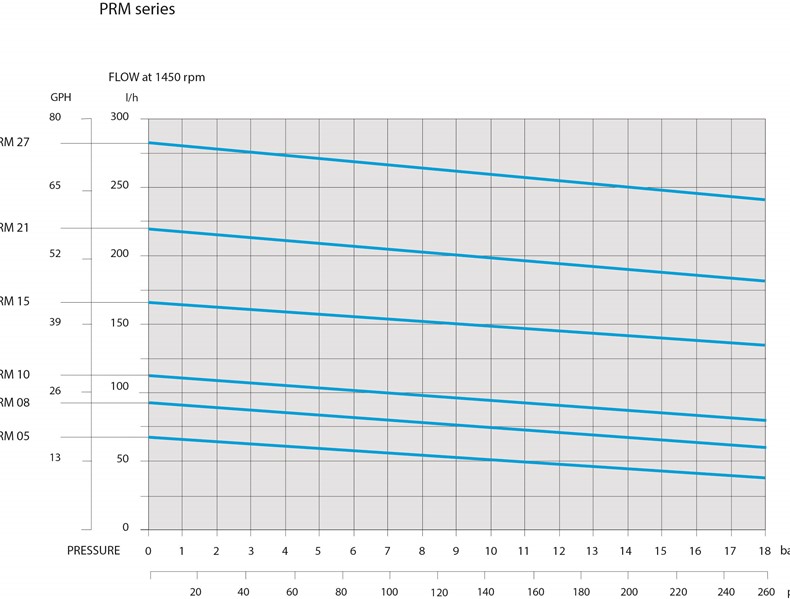

Product performance chart

Available materials

Depending on your needs, you can choose different construction materials for your pump:

Pump body:

  • Brass cw617 (pb <1.8%)
  • Brass cw510 (pb <0.2%)
  • Aisi303 stainless steel

Available seals:

  • Nitrile rubber nbr
  • Epdm thermopolymer
  • Fkm fluorinated rubber
Available options

With balanced bypass valve

With normal bypass valve

Without bypass valve

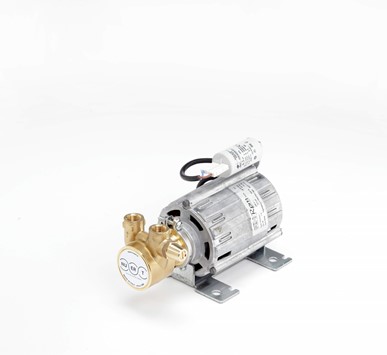

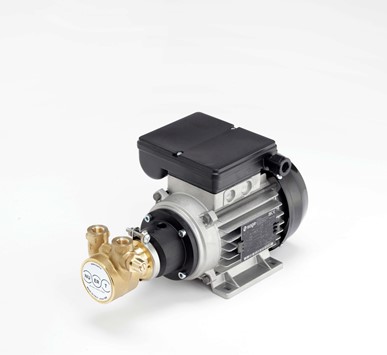

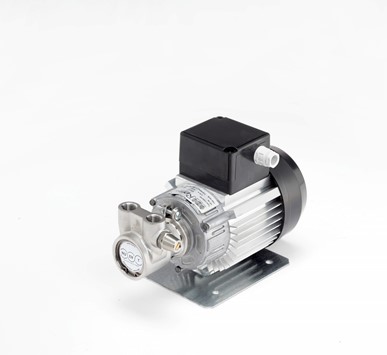

Electric motorization

Depending on the application, we can supply the pump equipped with different types of electric motors, with the following options:

- 110 or 230 V, 50 or 60Hz single-phase power supply

- 3-phase power supply at 400 or 440 V, 50 or 60 Hz

- 12 or 24 V DC power supply

- Power from 80 to 250 W

- For continuous or discontinuous service

- Water and dust protection up to IP65

- Option of an Atex certified version

Contact us for more information or for a quote.

Would you like to receive more information or create your own customized pump?

In addition to the standard products from the catalog, what drives us the most is to create - together with you - the ideal pump for your machine. Fill out the form and we will be happy to discuss with you your requests.
